Automotive CCTV MDVR Camera Systems

4 and 8 Channel Mobile Digital Video Recorders

The latest IntelliTrac digital video recorder generation is based on H.264 compression technology, resulting in enhanced recording capacity and improved network image transmission speed with high image quality. The 1080p full HD mobile DVR can support 4 or 8 channels analog SD/HD cameras, delivering and recording up to 1080p full HD resolution.
Its comprehensive list of features include an embedded 3-axis g-sensor plus various interfaces such as three USB ports / RS-485 / RS-232 / Panic Button / CAN bus / GPS, 3G/4G* and Wi-Fi Antenna. Recording on one 2.5” SSD hard disk, the device can record 30 days of video as well as by installing an SD Card for alarm event backup recording. This generation of product fully interfaces with The IntelliTrac Elite IT300 GPS Tracking Device to provide seamless GPS Telematics Tracking and live video streaming and recording of any alarm events.


Enquire
IntelliTrac MDVR CCTV

IntelliTrac

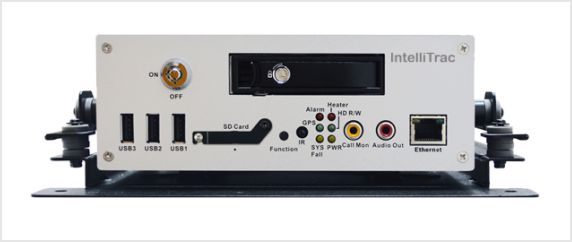

4 Channel MDVR (Front View)

Record up to 4 cameras in SD or HD Mode on SSD hard drives of up to 1TB providing 30 days of storage on a first in first out basis. Alarm events can be separately recorded on a 32GB SD Card. Includes 4G LTE, GPS, WIFI, Ethernet, 3USB, 1 RS485 and 3 RS232 interfaces. Operating from 9v-32V DC. Includes 4 audio inputs and 1 audio output, 4 alarm inputs and 2 alarm outputs. PAL and NTSC Video Formats, VGA, RCA, BNC Video outputs. weighing 2.15Kg Dimensions 178 x 199 x 50mm (without suspension brackets) Internal Heater. Operates -40deg to 55deg C

IntelliTrac

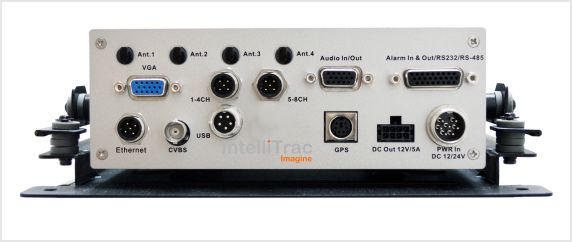

8 Channel MDVR (Rear View)

Record up to 8 cameras in SD or HD Mode on SSD hard drives of up to 1TB providing 30 days of storage on a first in first out basis. Alarm events can be separately recorded on a 32GB SD Card. Includes all features and specifications of the 4 Channel Model in the same form factor and weight. Both products also share a number of functions such as Video Pause & Video Loss Detection, Motion Detection, Events logs, PTZ, Schedule Settings and User rights management.

IntelliTrac 8 Channel MDVR

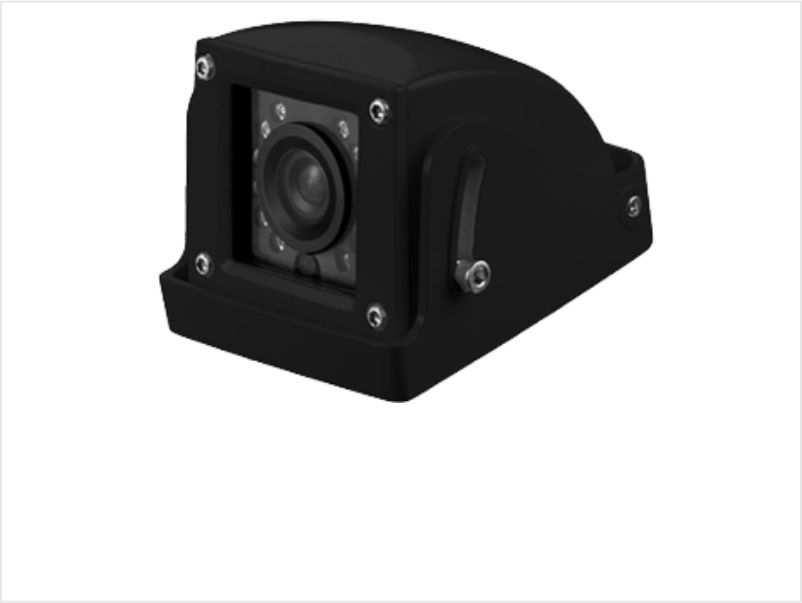

  • EMW935F
    1080p,720p & 960H switchable, IP67, Vandal Proof, 12 LED IR 10m range, Sony 2.24MP, 3.6mm Lens, 88 x 70 x 61mm

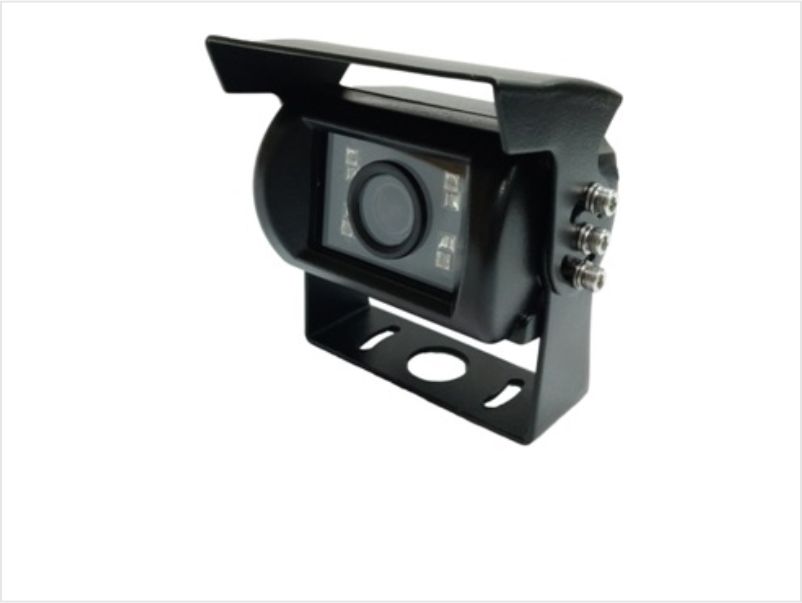

  • EMW990F
    1080p HD, IP67, 4 LED IR 10m range, 2.8mm Lens, NTSC/PAL, Compact 76mm x 69mm x 79mm

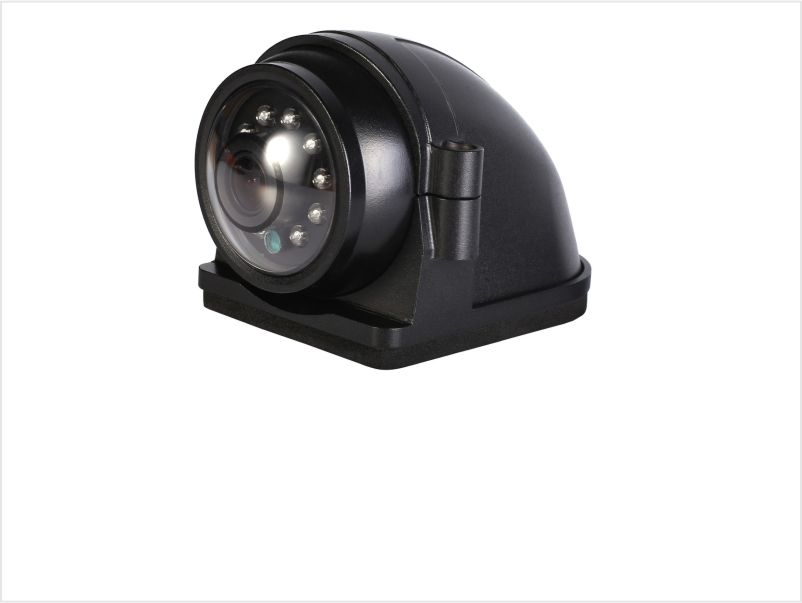

  • EMW921F
    1080p HD, IP67, 10 LED IR 10m range, 2.1mm Lens, NTSC/PAL, Compact 109mm x 78mm x 71mm

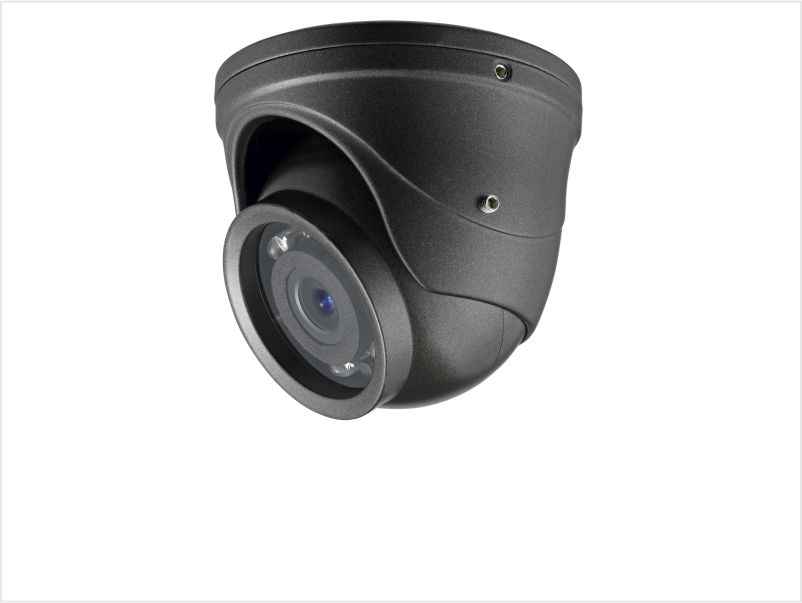

  • EMD935F
    1080p HD, 6 LED IR 10m range, 2.8mm Lens, NTSC/PAL, Sony 2.24MP CMOS, Compact 59mm(H) x 60mm(D)

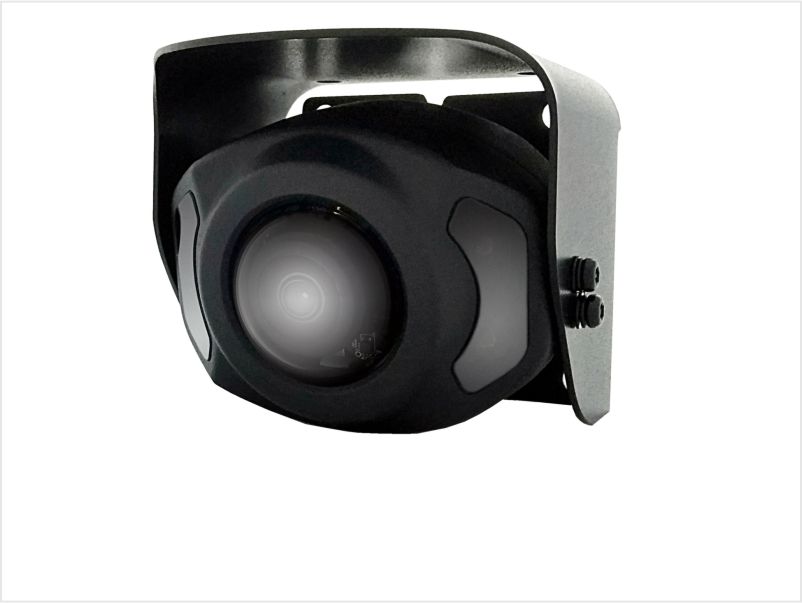

  • EMF917F
    Fisheye 180deg, AHD 1080p, 4 LED IR 10m range, 2.8mm Lens, NTSC/PAL, Sony 2MP CMOS, 71 x 62 x 65mm

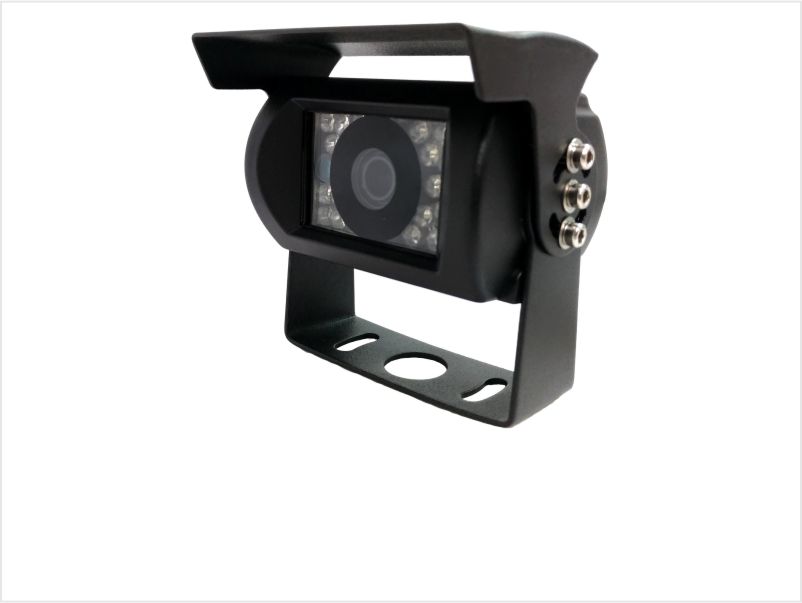

  • EMC920F
    1080p HD, 9 LED IR 10m range, 2.8mm Lens, NTSC/PAL, IP54, Compact 76mm x 63mm x 68mm
